400G/800G Network/Data Center Validation

400GE/800GE Network/Data Center Validation

100G Serial FEC Aware Conformance Testing and 800GE Full Line Rate Traffic Demos

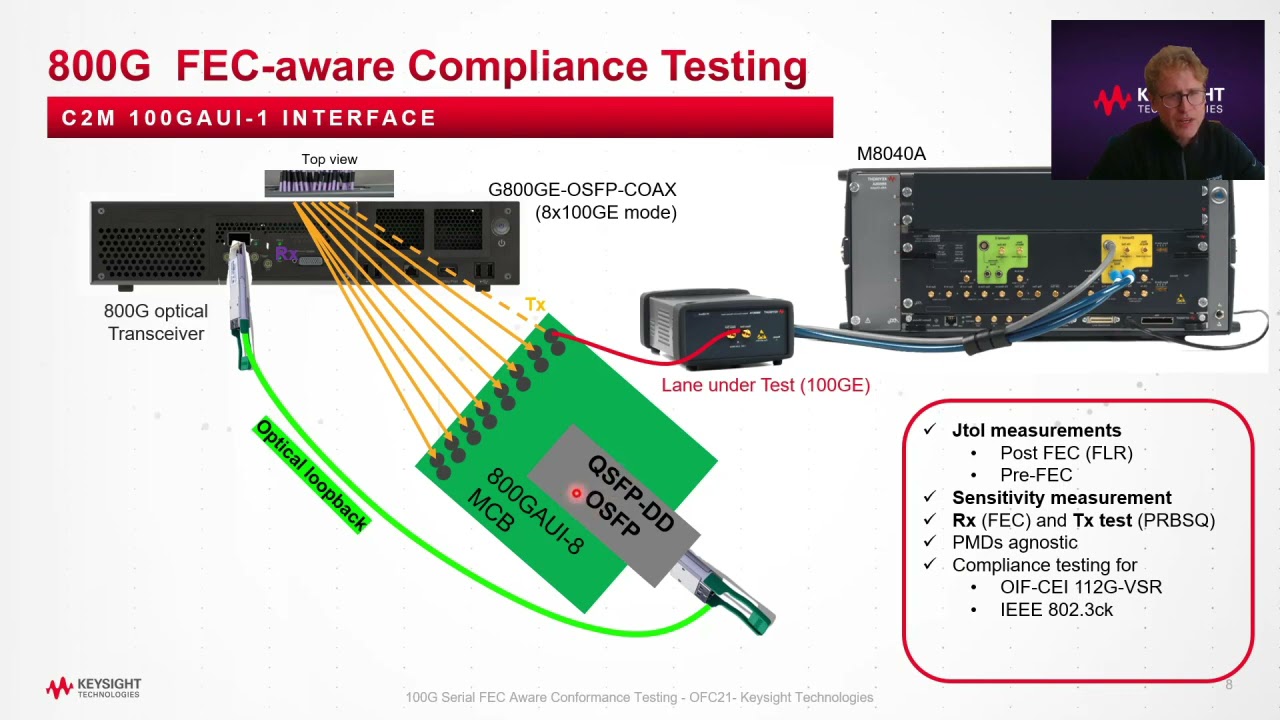

Keysight will demo a physical design validation solution for 800G components and transceivers. 100G electrical interfaces such as those defined by the IEEE 802.3ck and OIF-CEI 112G standardization bodies are the workhorse of next generation datacenter. Because 53Gbaud PAM4 interface design margins are shrinking, the need for accurate in-depth design validation has increased tremendously. The solution consists of the M8040A BERT, combined with the G800GE multichannel tester. It is designed to integrate FEC constraints into the physical design validation and compliance testing.

100G Serial FEC Aware Conformance Testing highlights:

System margin insights
Measure frame loss ratio
Error burst analysis

Keysight implemented the Ethernet Technology Consortium (ETS) 800GE and will be first to demonstrate full line rate traffic based on IEEE 802.3ck 100G PAM4 electrical lanes. The G800GE, Keysight’s next generation L1 FEC and BERT multiport system, supports industry-leading form factors such as OSFP112 and QSFP-DD80.

800GE Full Line Rate Traffic highlights:

First full-line rate traffic solution
Best-in-class error analysis
Two ports of 100G PAM4 electrical lanes
